Brief Introduction
This durable, multi-functional and portable solar power station DS-PPS-300A is very easy to use and carry, with 40W foldable large solar panel and 300WAH li-on battery, this solar power station can use in many application scenarios. The portable power station generator is a great option for trips, camping, excursions and more, and you can use the power station as a generator or emergency power supply source.
Features
- 300WH Lithium ion battery capacity.

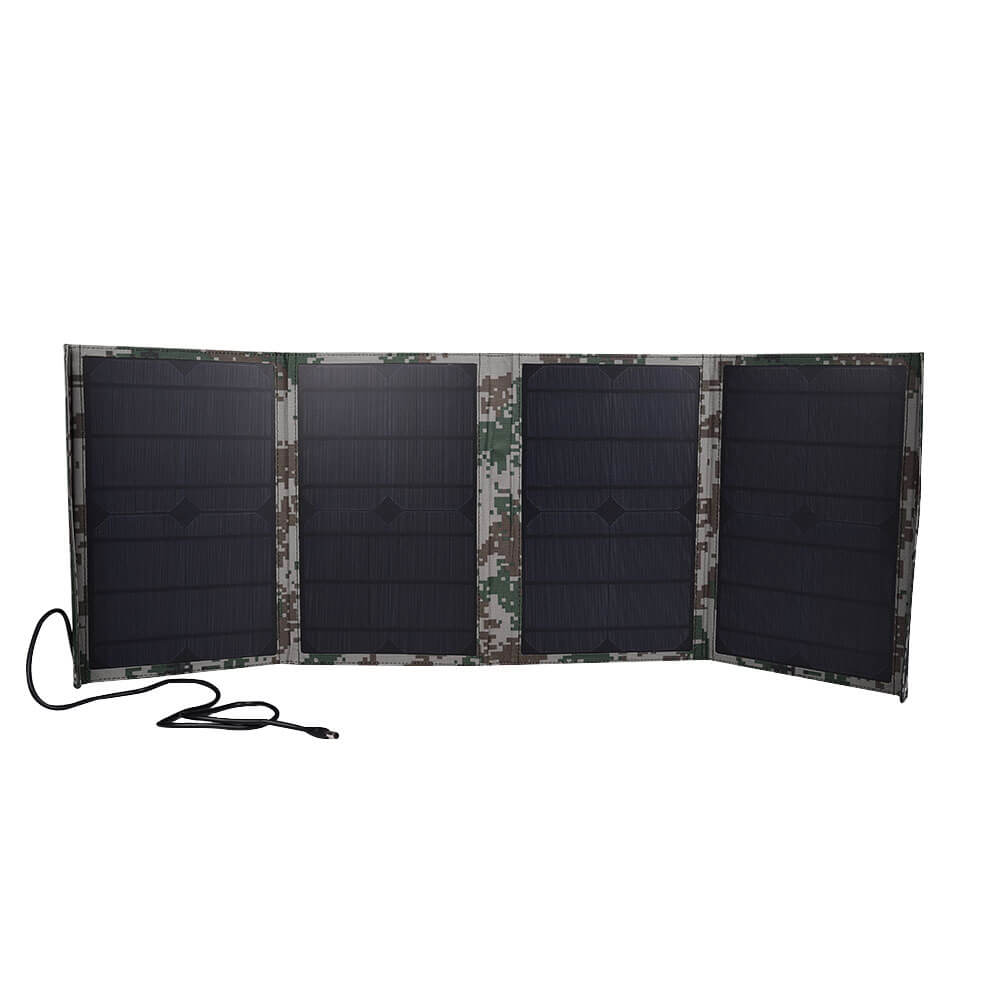

- Foldable high energy converting efficiency 18V 40WH ultra-thin solar panel (optional item, sold separately) can charge the portable power station within 7.5 hours.
- Built-in AC inverter can provide max 300W output at 220V for electrical appliances.
- Built-in AC charger and you need not worry about forgetting to carry the big size charger.
- Four 5V/8A output USB ports so you can charge four devices at the same time.
- 5W high bright LED working lamp for emergency condition.
- Auto start function, output 400A current start the car with displacement below 3.5L (optional item, sold separately).
- Plug into wall socket (full charge in about 6.5 hours)
- Can work as a Photovoltaic Uninterruptible Power Supply (PV-UPS) system, which support commercial power supply priority, charge and play.
- Integrated design and easy to use and carry.
- Info LCD display screen provides charge and discharge status and reports power use
- Power buttons with indicator light for each of the output port charging
- DC 12V/5A cigarette lighter output for you to use it in the car.

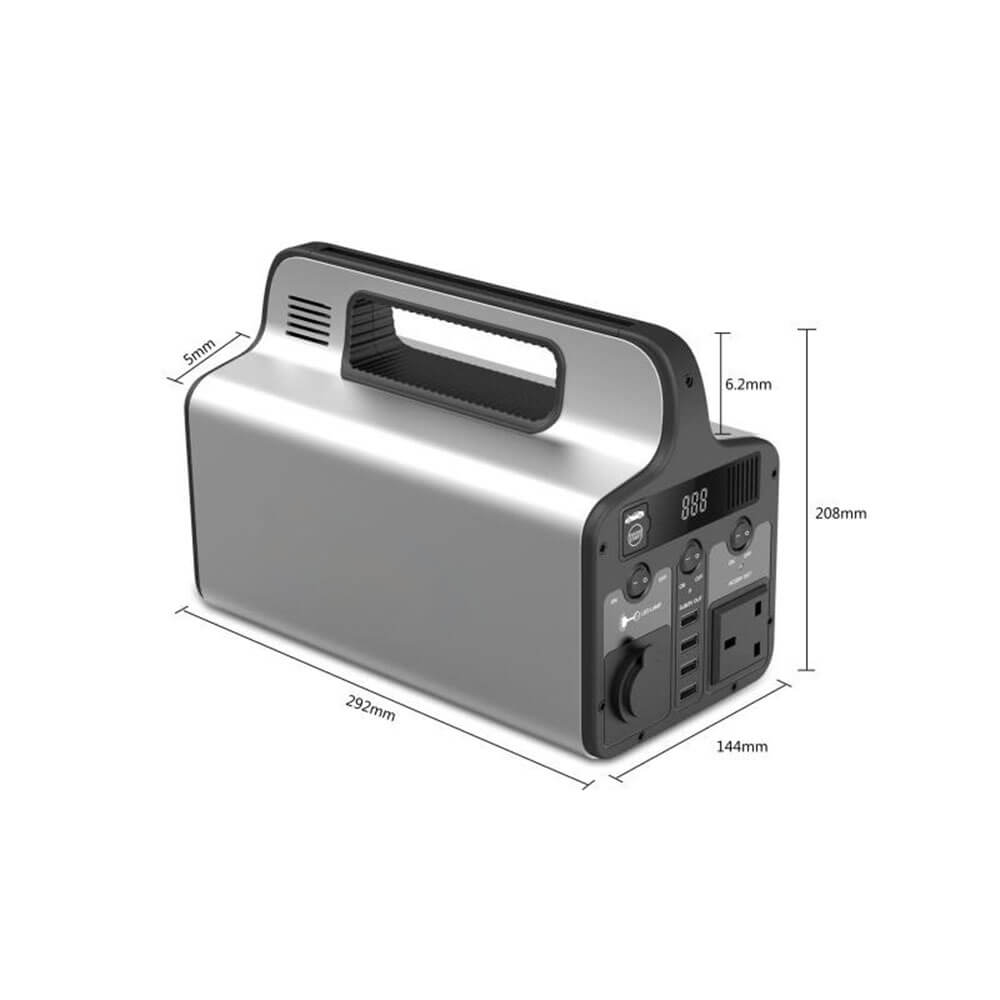

Mechanical Dimension

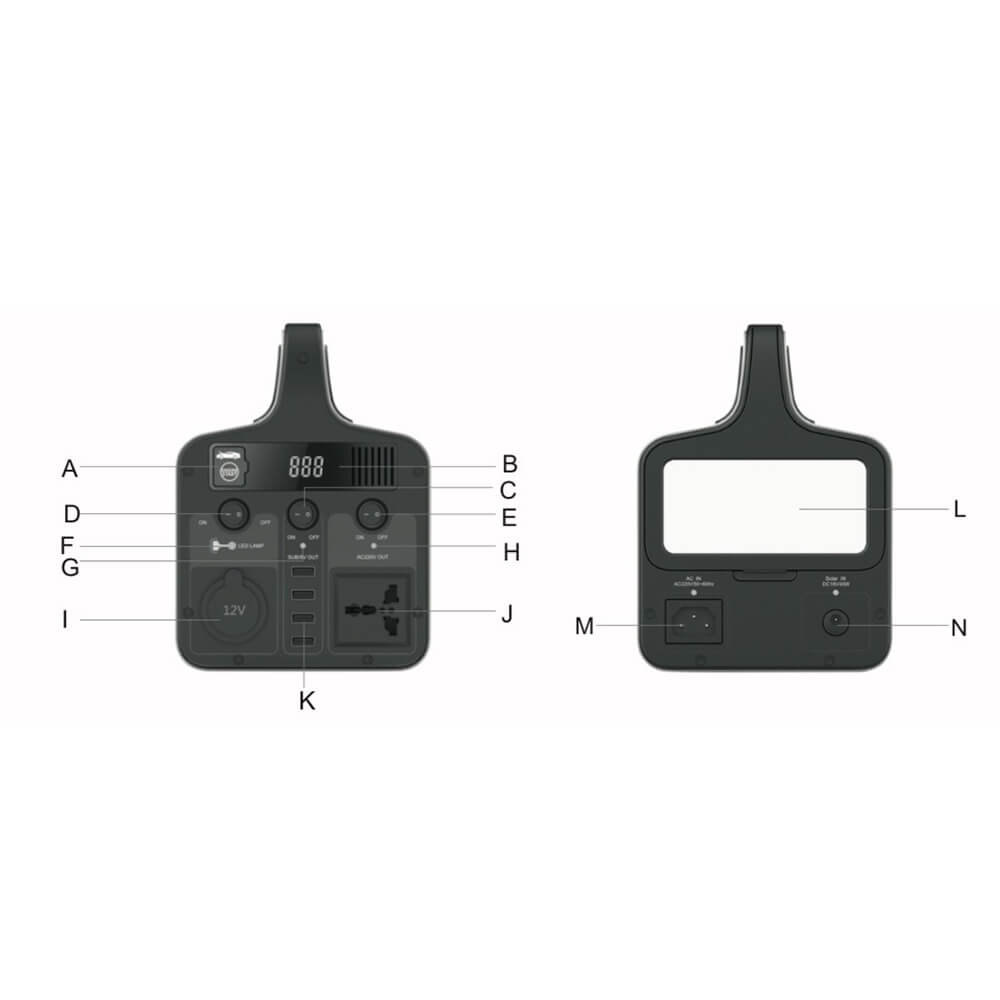

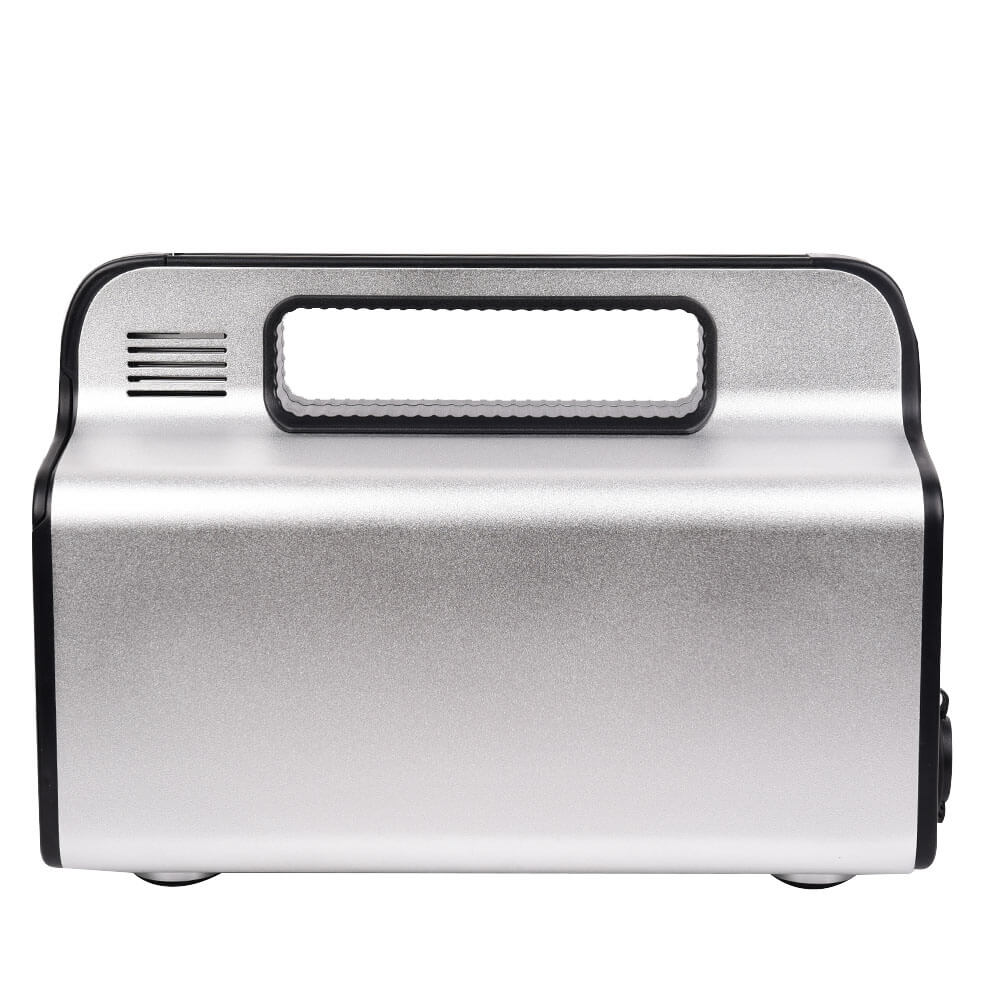

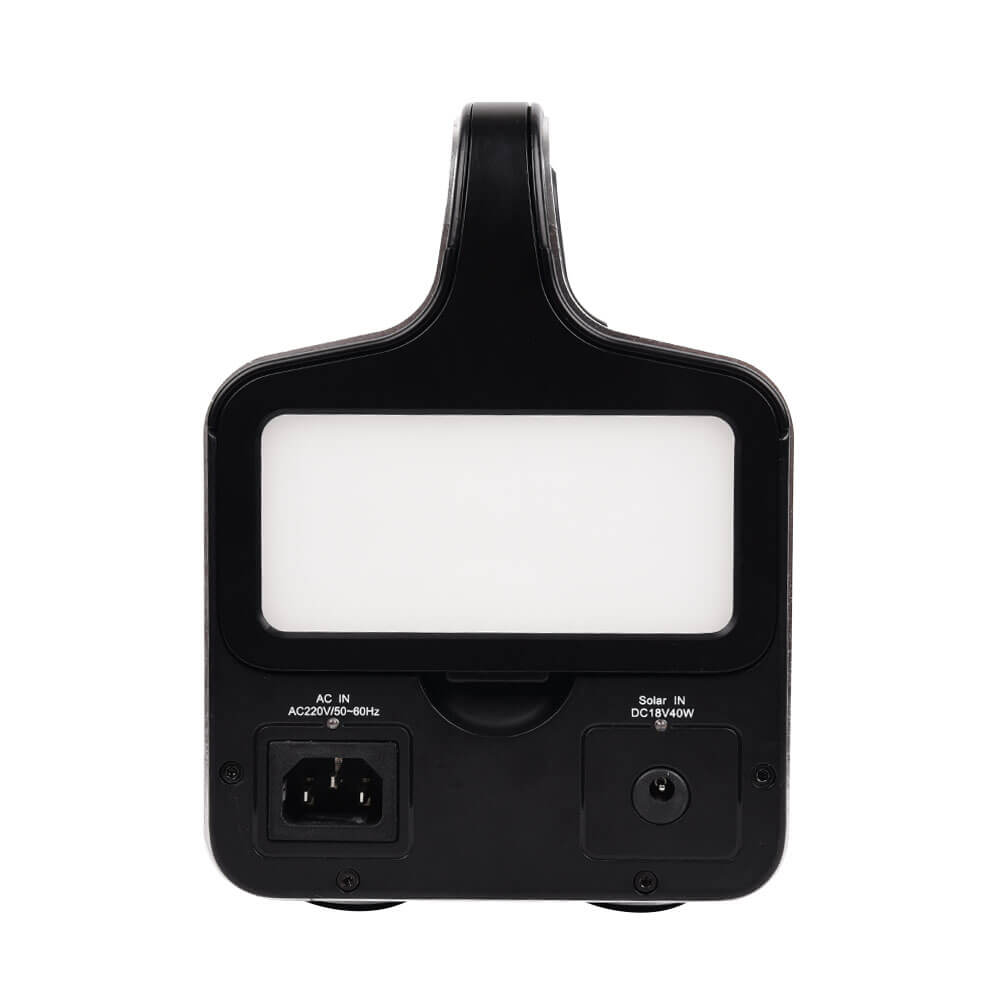

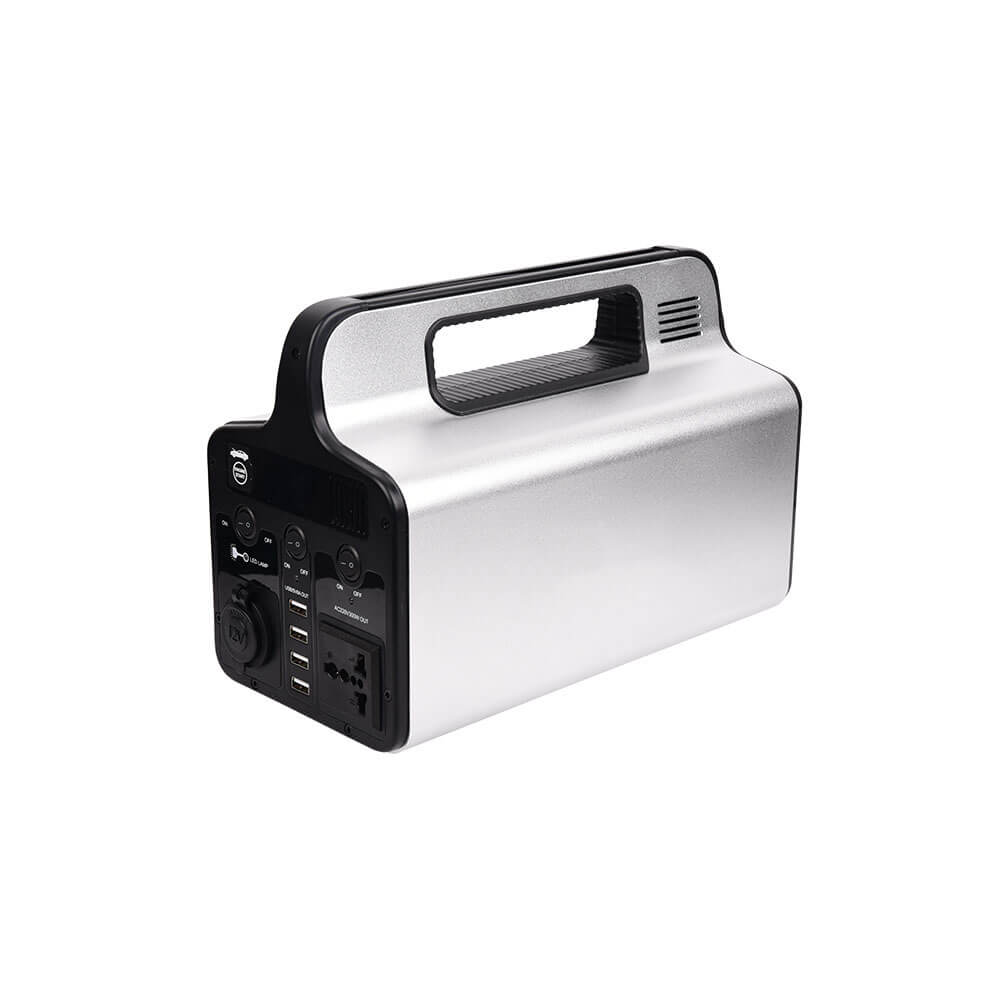

Front View and Back View
| A | Engine start output port(Optional) | B | Digital power display tube |
| C | USB 5V output switch | D | lighting switch |
| E | AC inverter output switch | F | Lighting indicator light |
| G | USB 5V indicator light | H | AC inverter indicator light |
| I | CD 12V Cigarette lighter output port | J | AC inverter output port |
| K | USB5V output port | L | LED Light |
| M | AC charger input port | N | Solar charger input port |
Specification
| Model No. | Portable Power Station DS-PPS-300A |
| Mechanical Dimension of Power Station | 290x198x144mm |
| Solar Panel Voltage and Power | 18V/40W |

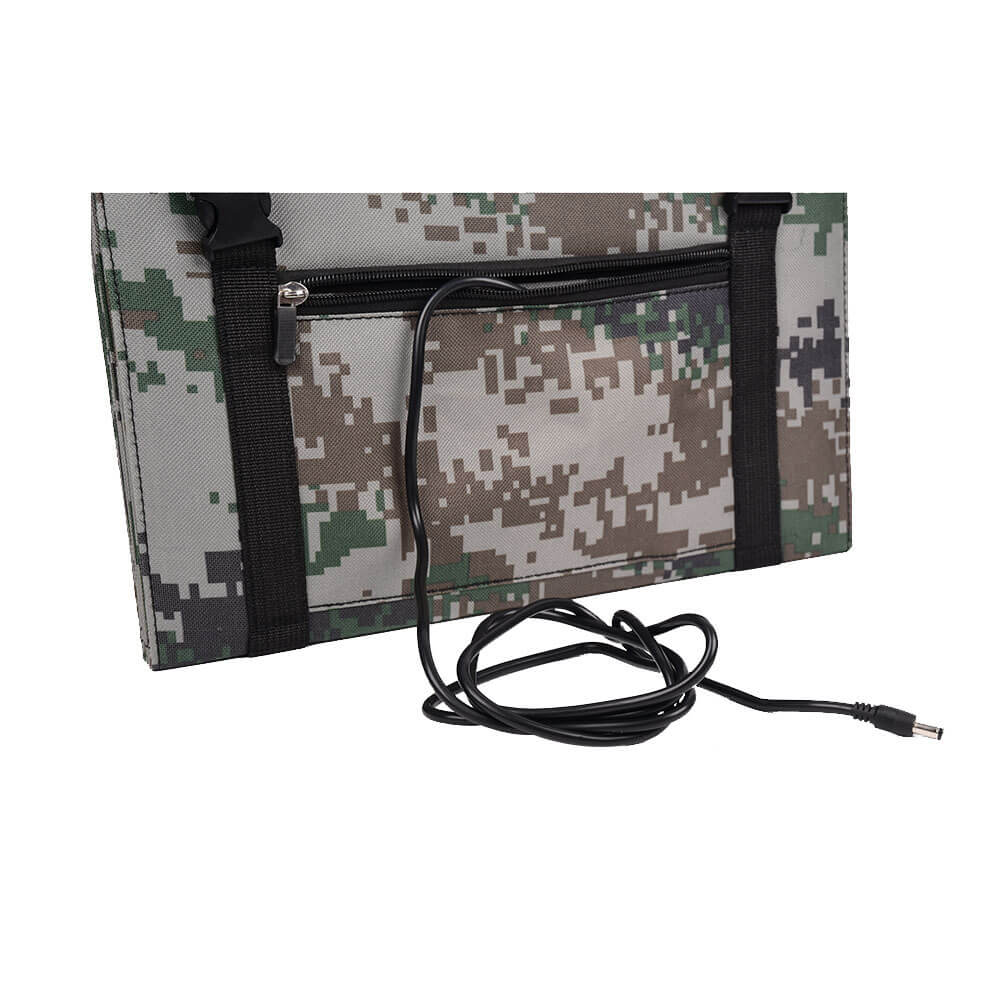

| Size of Solar Panel | 220mm*340mm (Fold) 965mm*340mm (Unfold) |
| Solar Panel Life Span | more than 15 Years |
| Li-ion Battery | 11.1V / 30AH / 300Wh |
| Li-ion Battery Life Span | 500 Circles |
| LED Lighting Power | 5W |
| Luminous Flux | 800lm |
| USB Port Output | 5V/8000mA |
| Full Charge Time | AC input @ 6.5H; solar input @ 7.5H |
Typical Functions
-
Charging

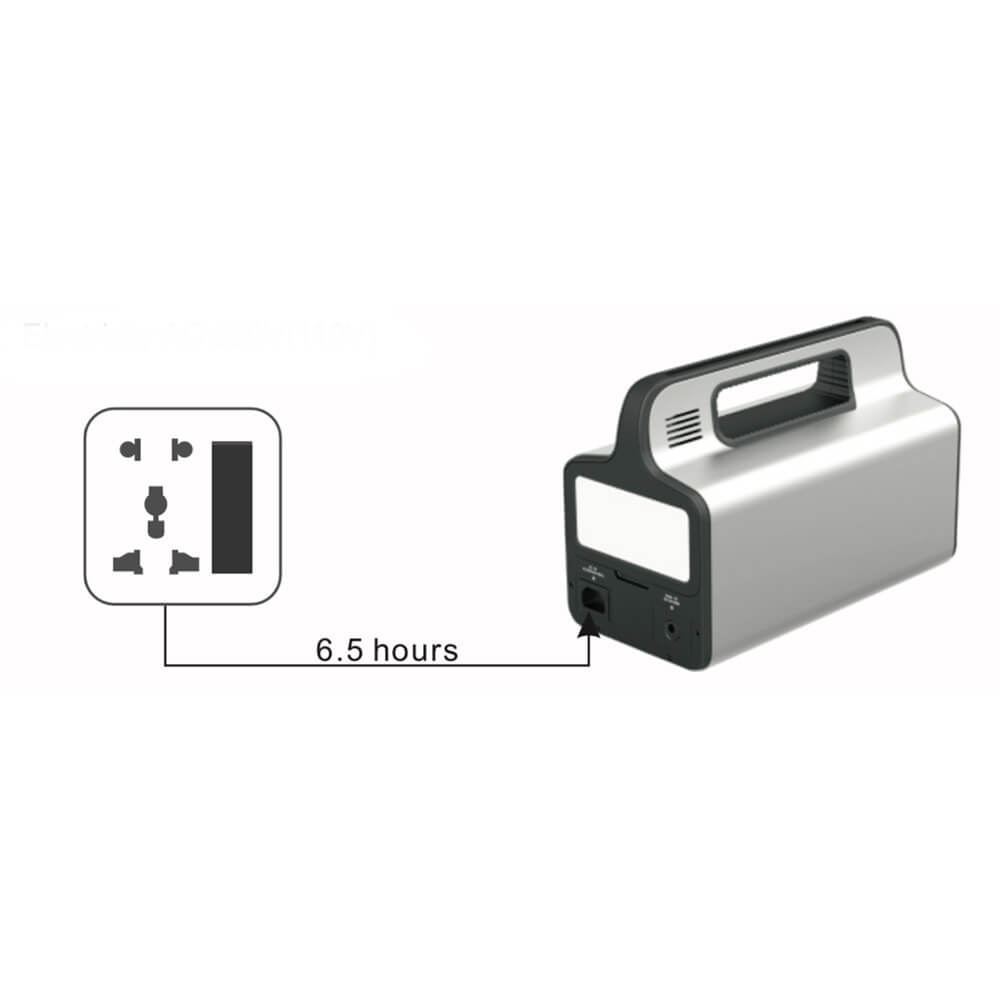

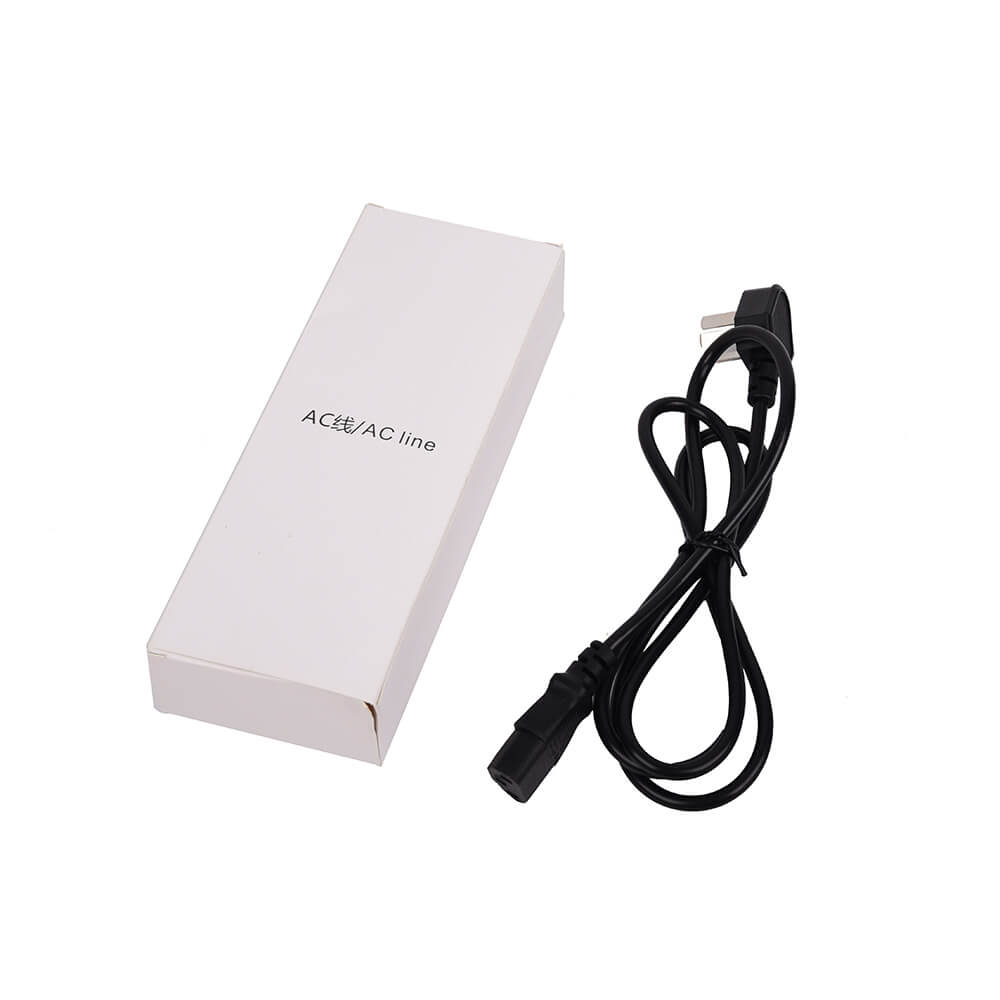

A. AC charging

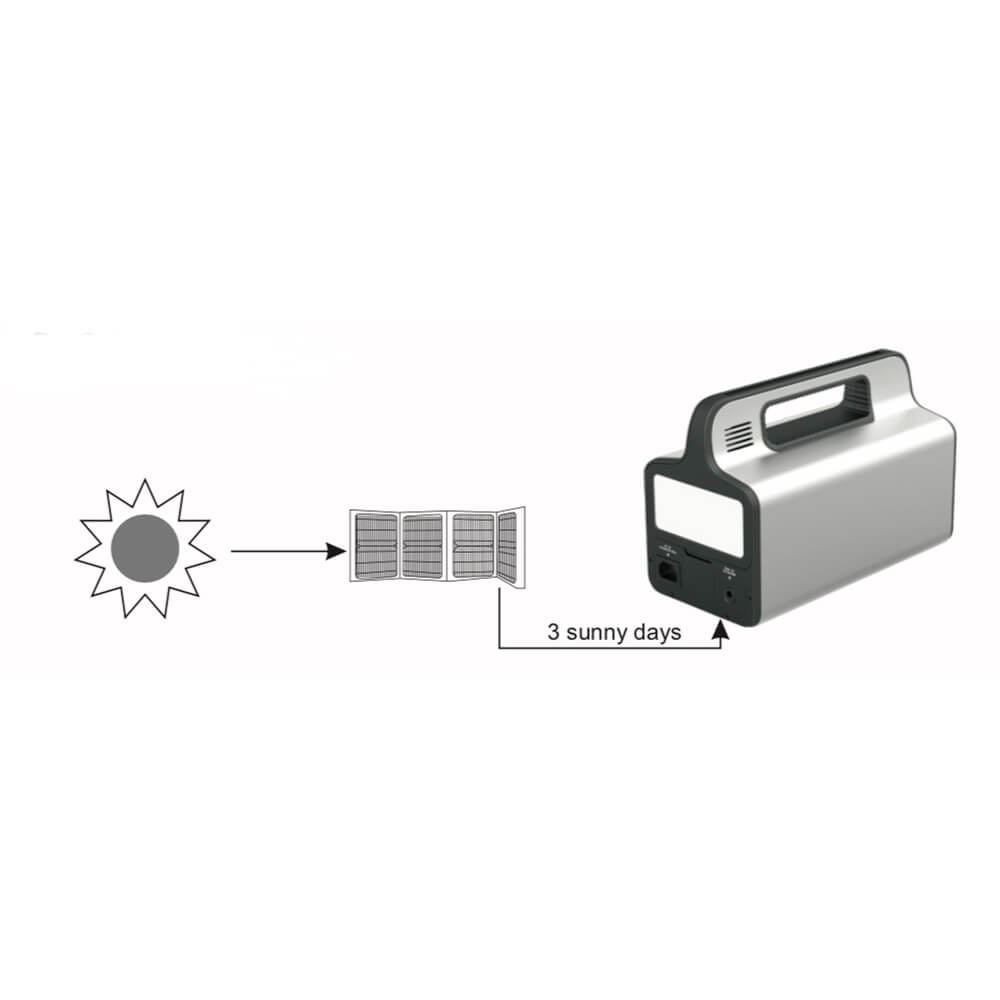

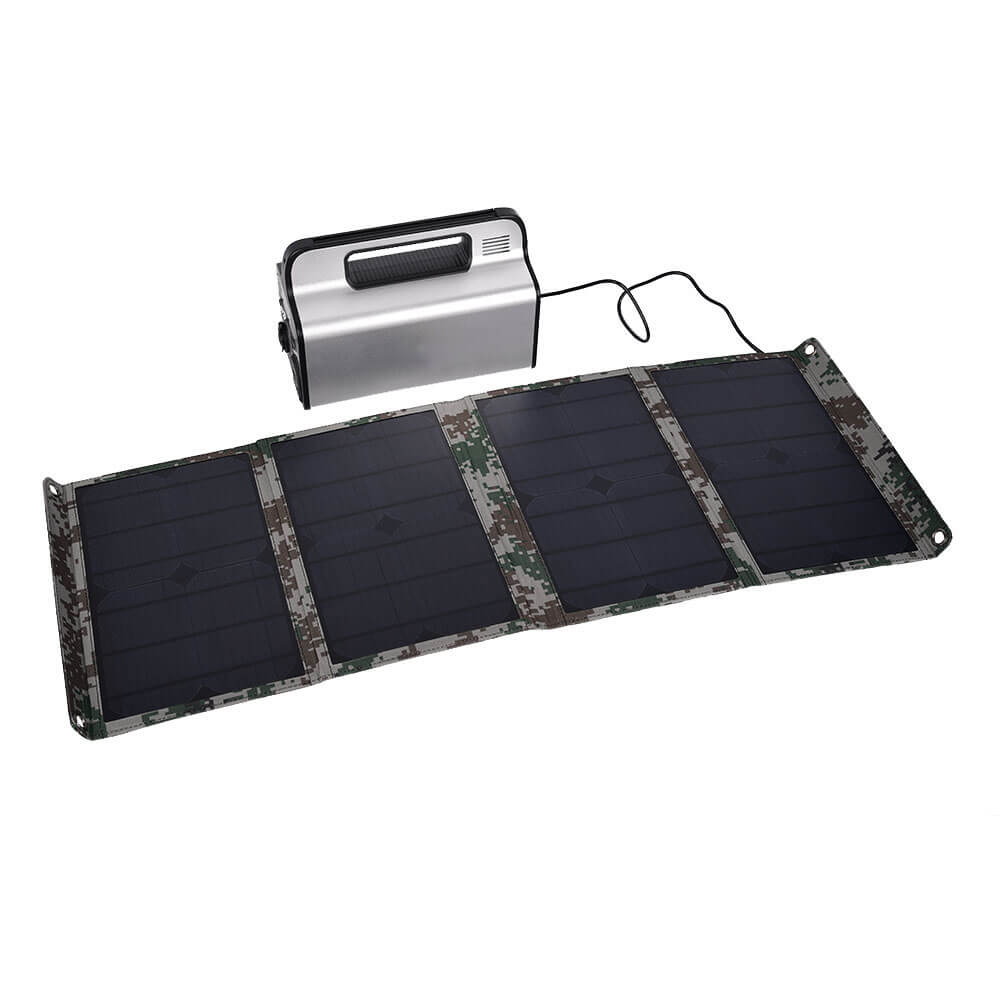

B. Solar Charging

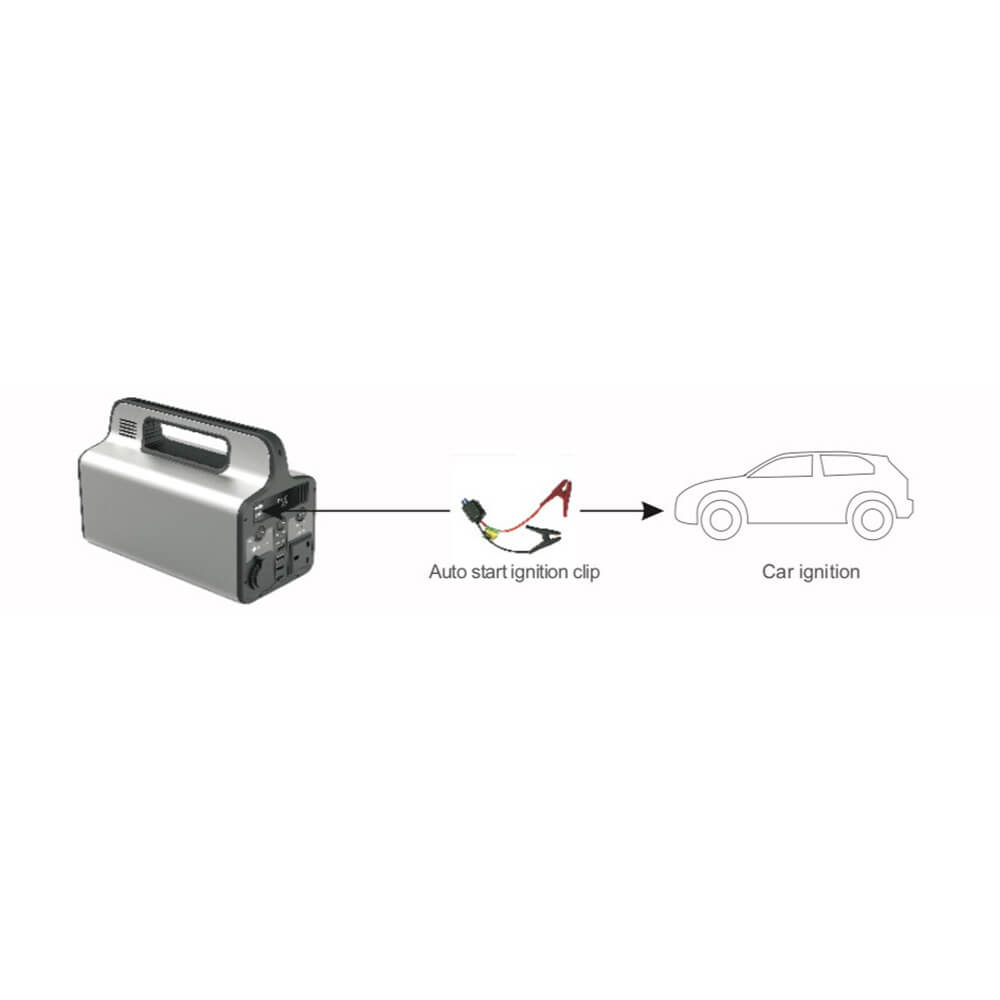

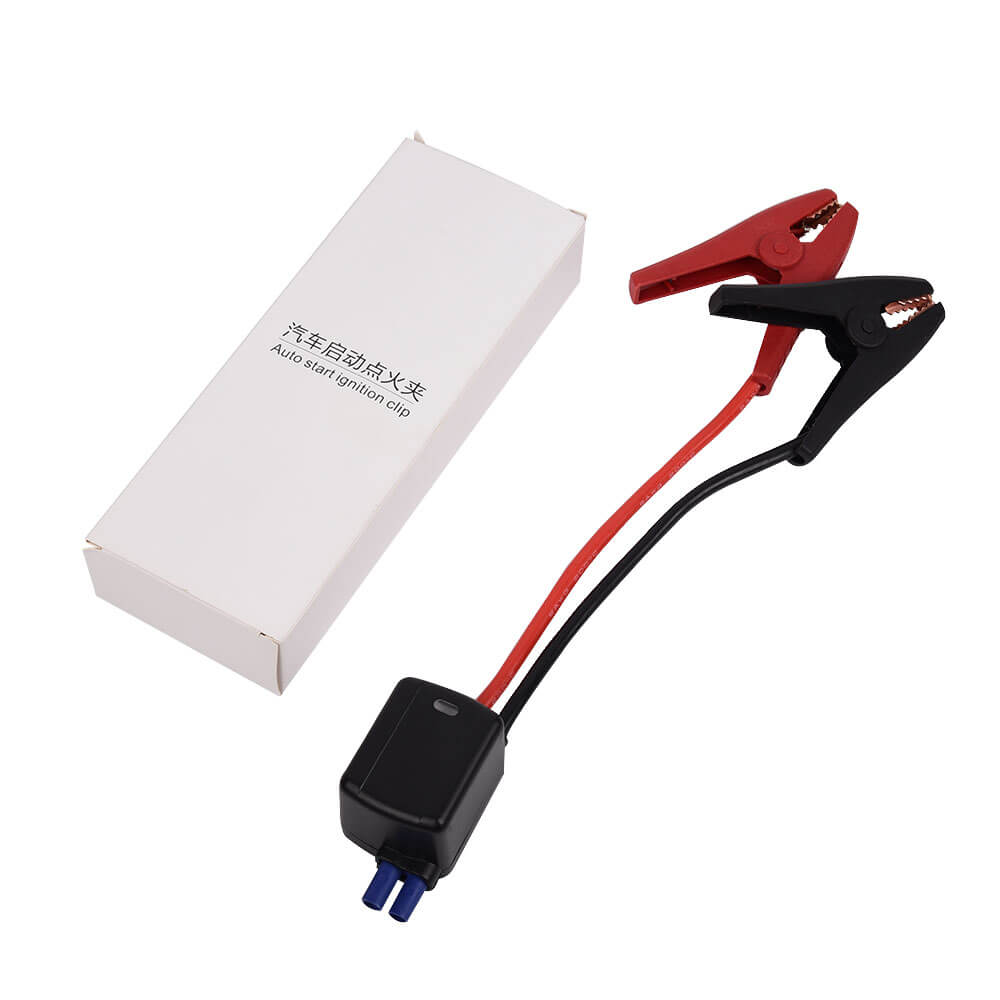

2. Auto Start

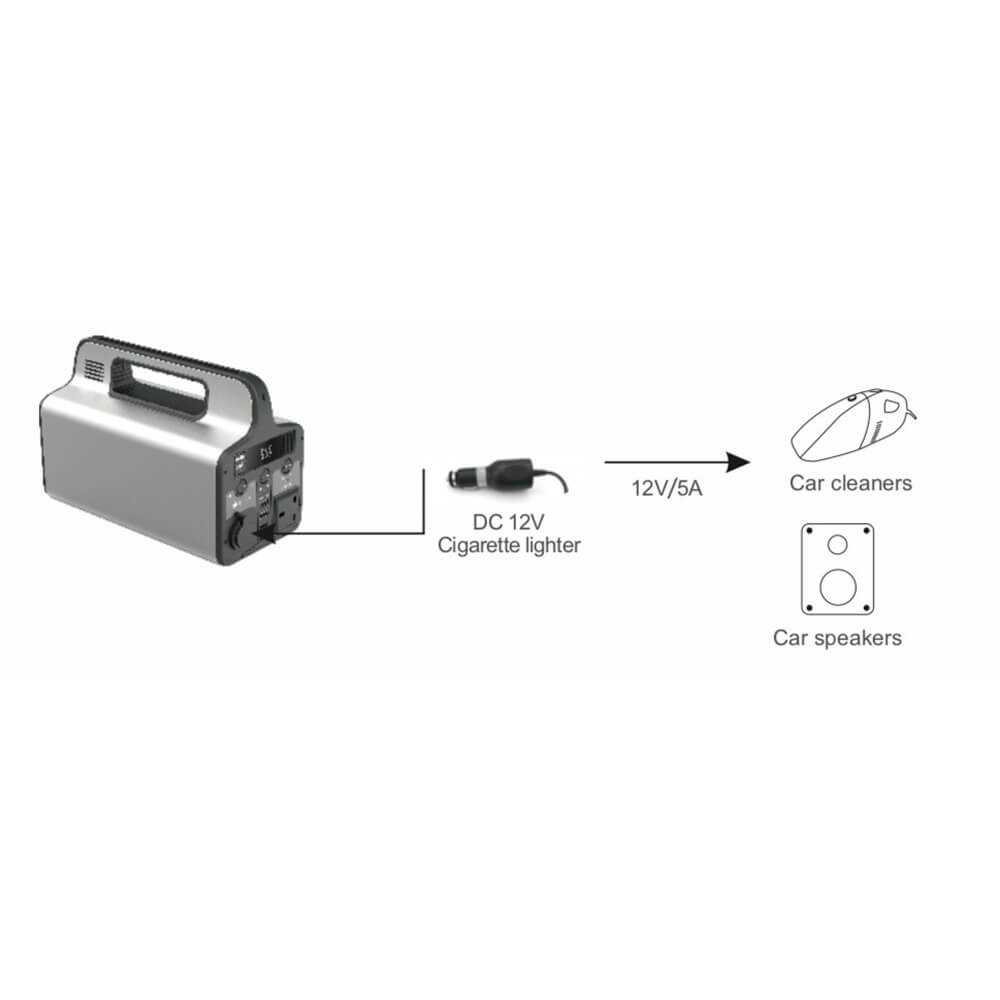

3. 12V/5A Output

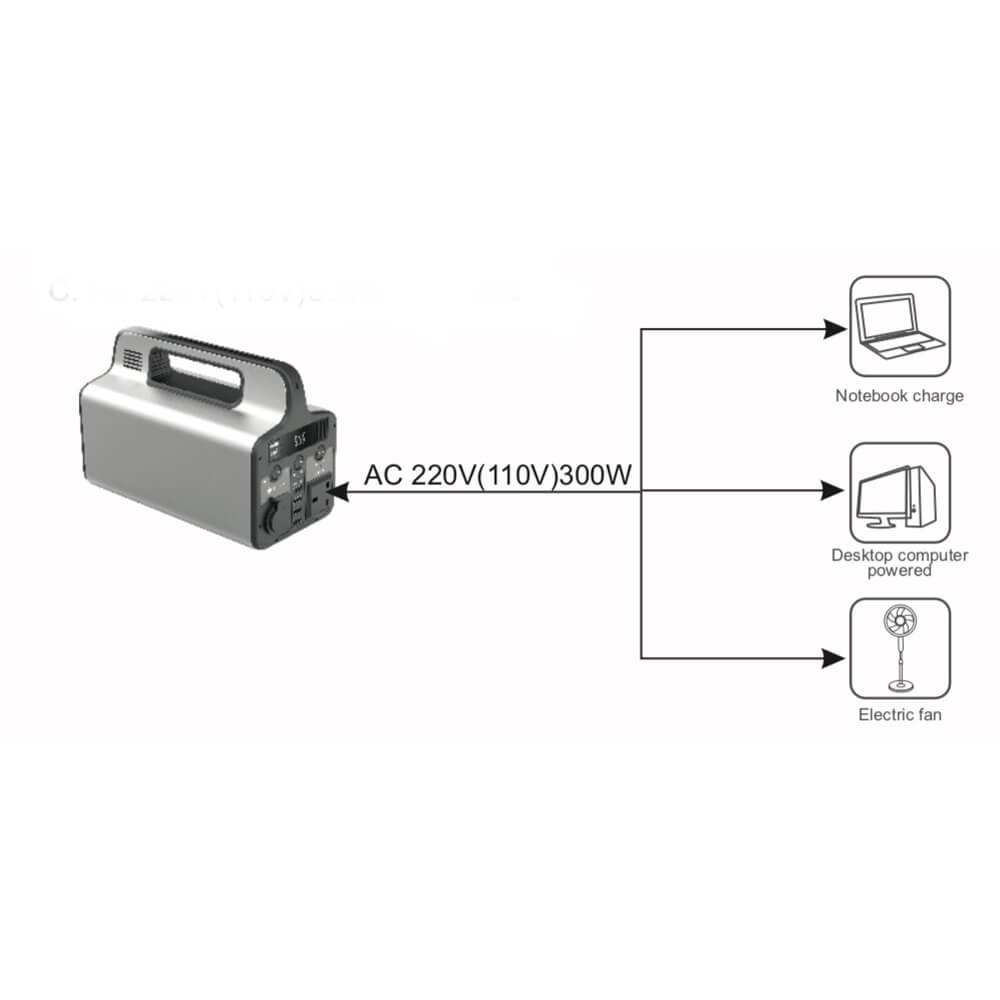

4. AC Output

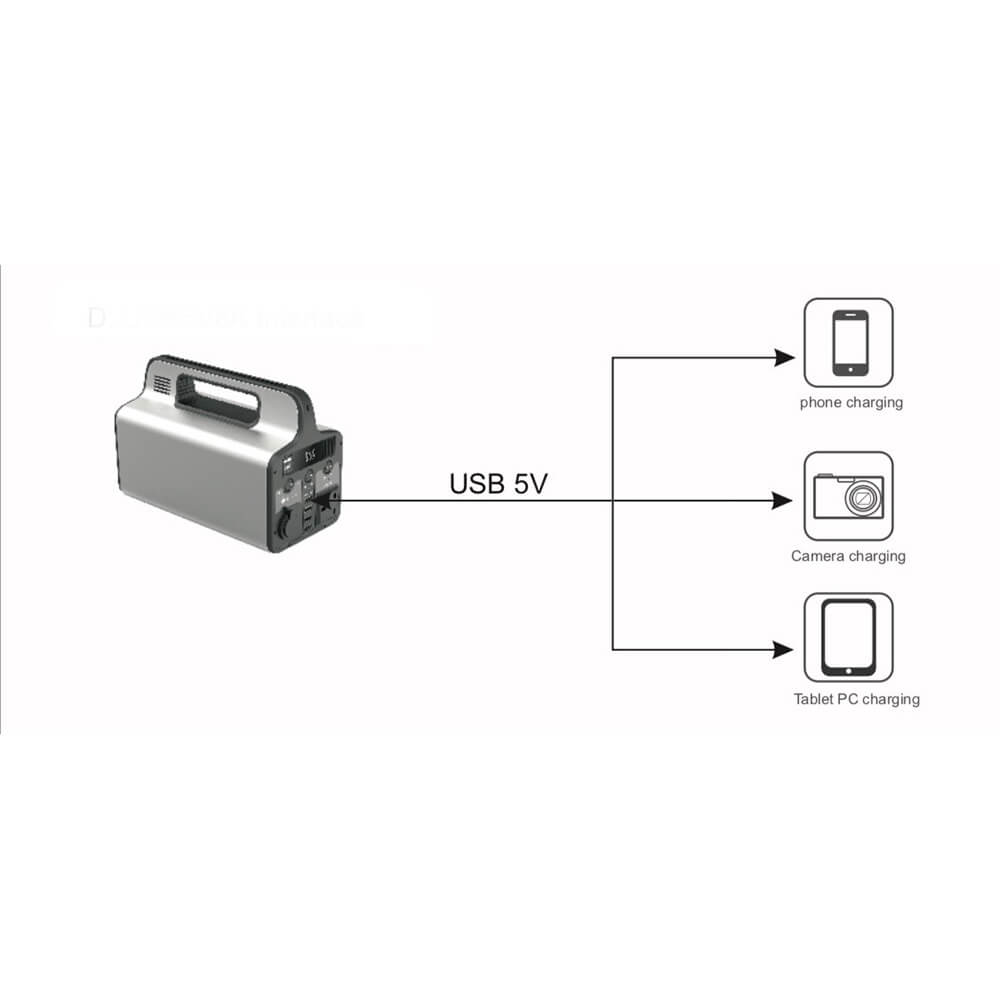

5. USB Output

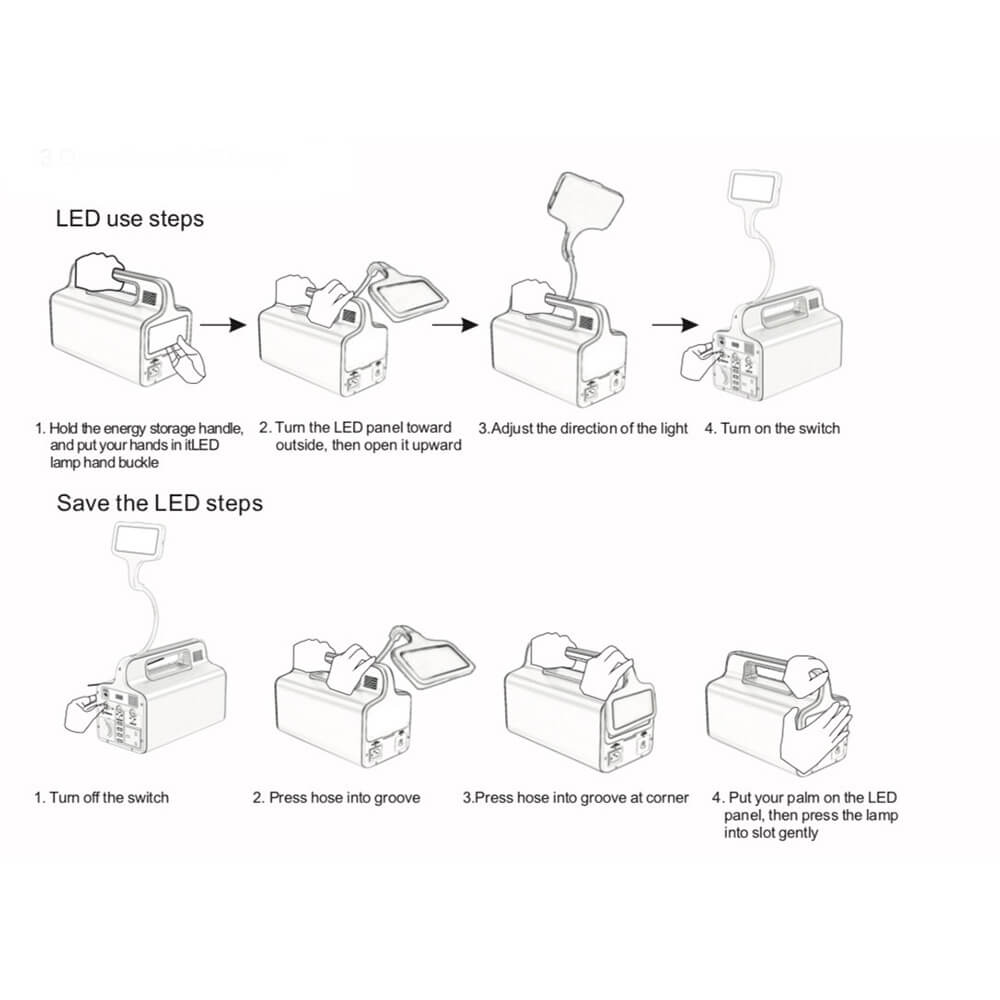

6. LED Lighting
Application
This portable solar power station system is ideal for places with no mains electricity such as outhouses, sheds, garages, farms, stables, as well as for camping, travel and any other outdoor activities. The system is fully independent from the grid / AC power source and works purely based on sunlight energy.
Packing Information
| Quantity per Carton | 1PCS/Carton |
| Net Weight per Carton | 4.96kg/carton |
| Gross weight per Carton | 5.61kg/carton |
| Carton Size | 33.5cm(L)*20.5cm(W)*26cm(H) |
