Brief Introduction
This portable solar kit DS-SGK-030A is very easy to use and carry, with bigger solar panel and much more capacity li-on battery, which is more powerful than the basic model.
Features
- Powerful solar panel and li-on battery.
- Integrated design and easy to use and carry.
- High solar energy converts efficiency.
- Smart protection chip: over-charging protection, over-discharge protection, overload protection, short circuit protection etc.

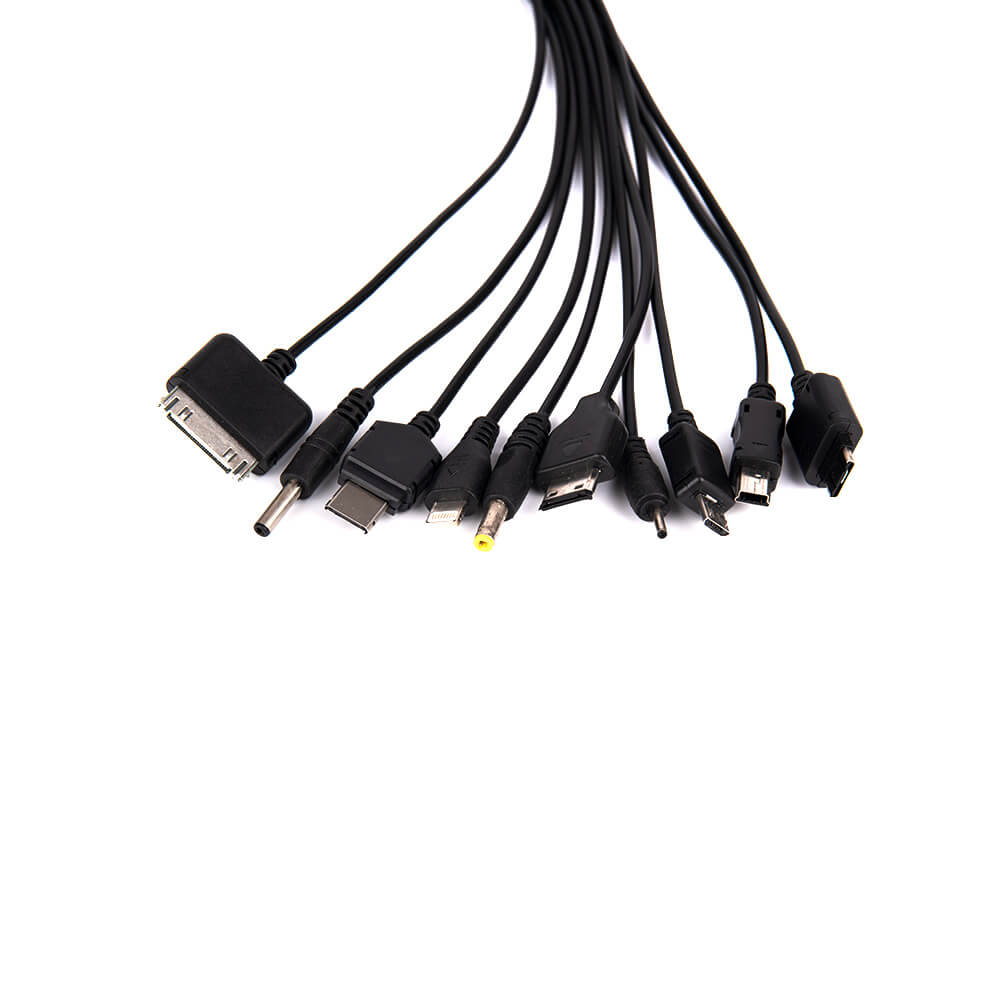

- 10 in 1 multiple devices charging.
- 5 LED indicator lights display the battery level.
- Only 0.03W standby power.

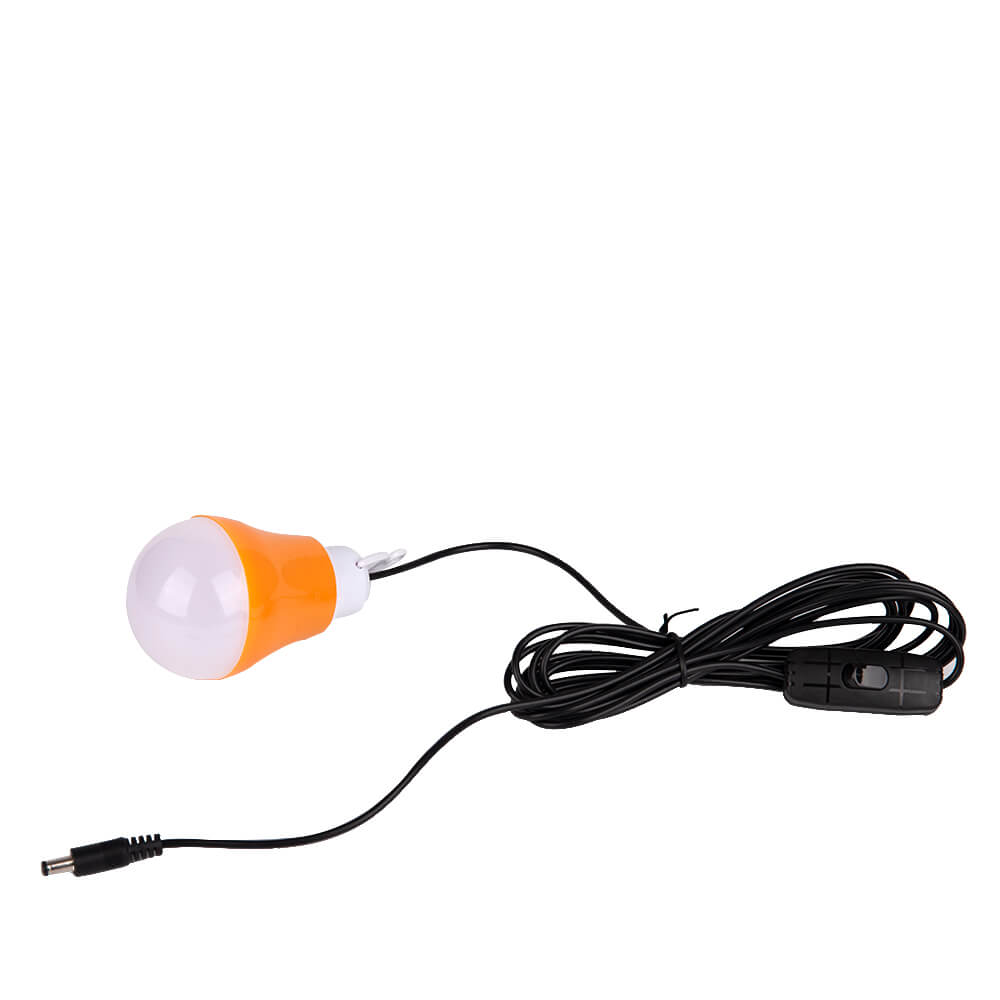

- Two LED bulbs with high bright 2835 LEDs.

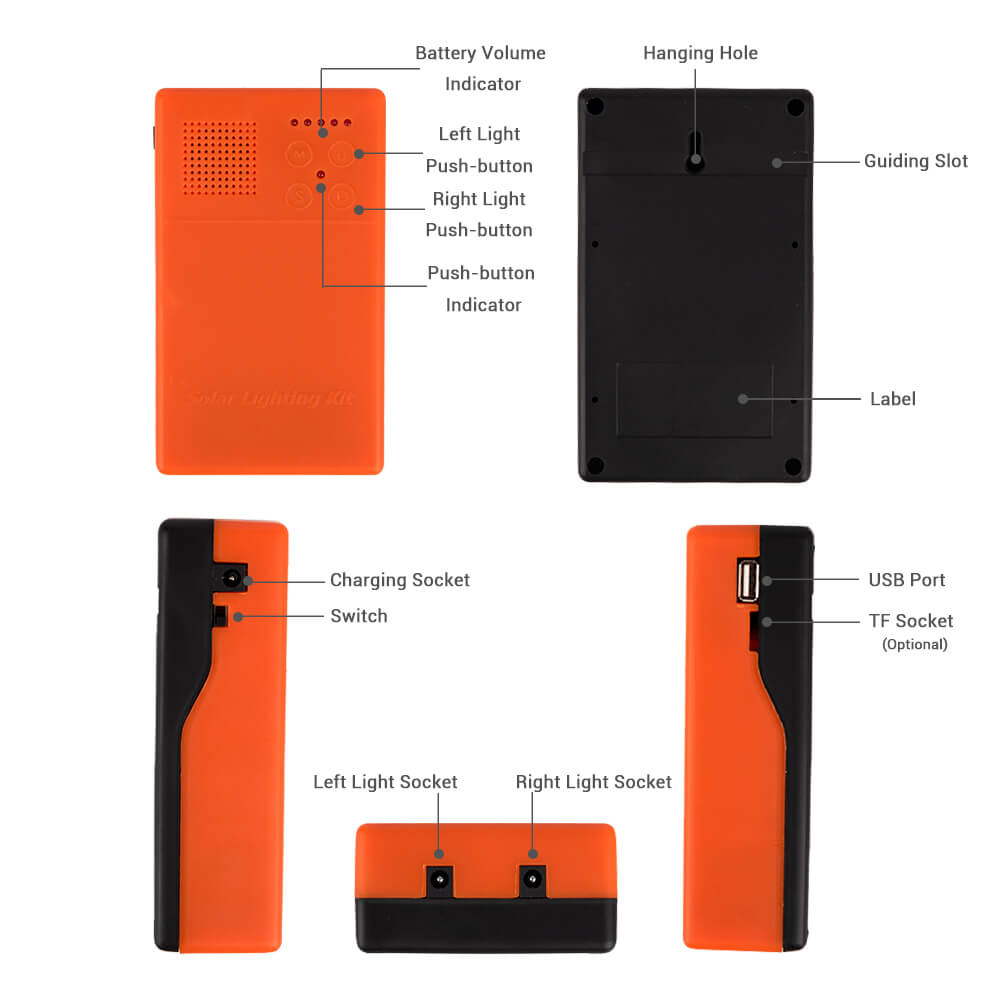

Push-button Direction

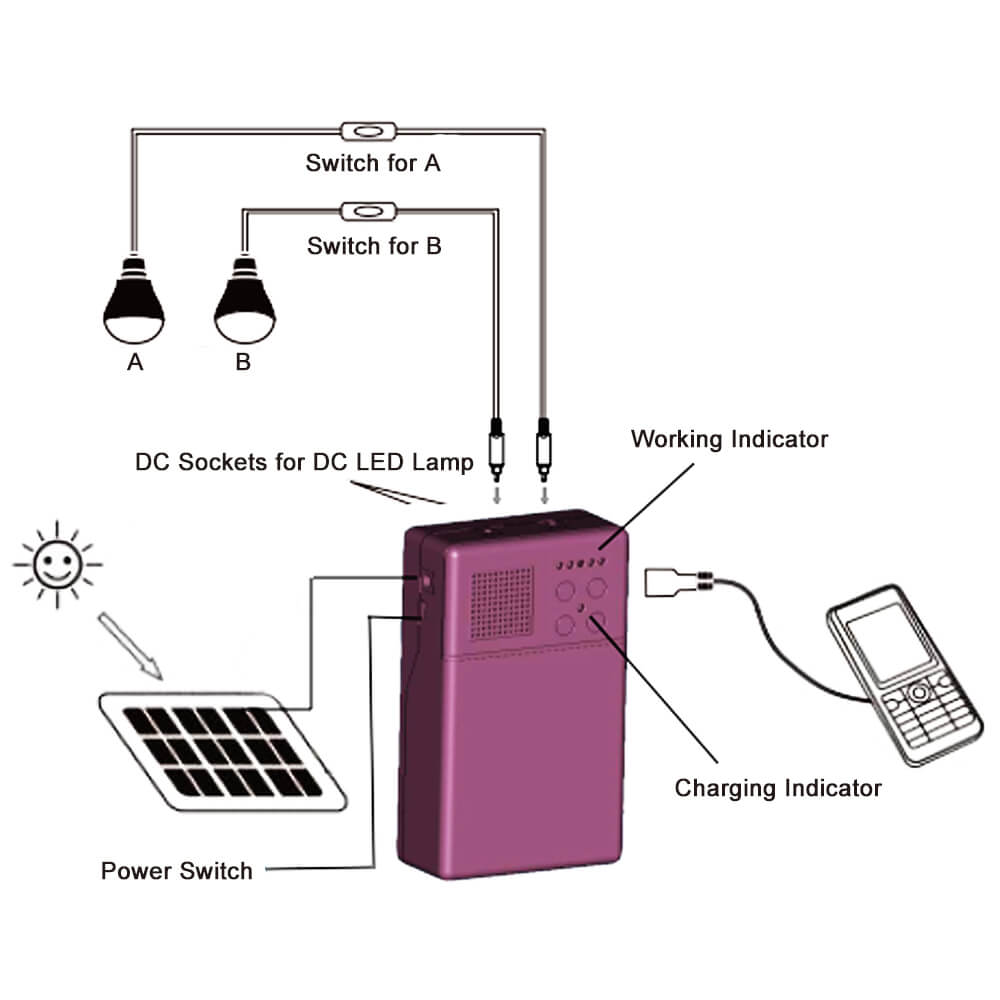

Operating Instruction
Specification
| Model No. | Portable Solar Generator Kits DS-SGK-030A |
| Solar Panel Voltage and Power | 10V/5W |
| Size of Solar Panel | 240mm(L)*210mm(W)*18mm(H) |
| Cable Length of Solar Panel | 5 Meters |
| Solar Panel Life Span | more than 15 Years |
| Li-ion Battery | 7.4V/4AH |
| Li-ion Battery Life Span | 500 Circles |
| LED Lighting | 2*6PCS 2835 LED bulbs |
| Luminous Flux | 2*100lm |
| Cable Length of LED Bulb | 4 Meter with Switch |
| LED Lighting Power | 2*1.2W |
| USB Port Output | 5V/1000mA |
| Full Charge Time | Around 6 Hours |
| Lighting Time after Full Charging | 2*100%, 8 Hours |
Application
This solar lighting system is ideal for places with no mains electricity such as outhouses, sheds, garages, farms, stables, as well as for camping, travel and any other outdoor activities. The system is fully independent from the grid / AC power source and works purely based on sunlight energy.
Packing Information
| Quantity in Color Box | 1PCS/Box |
| Color Box Size | 250mm(L)*220mm(W)*105mm(H) |
| Color Box Gross Weight | kg/Box |
| Quantity in Carton | 8boxes/carton |
| Net Weight in Carton | 10.5kg/carton |
| Gross weight in Carton | 11.2kg/carton |
| Carton Size | 52cm(L)*46cm(W)*23.5cm(H) |
